How Much Does a Draftsman Charge for House Plans?

A draftsman typically charges $1,000 to $6,000 to draw plans for a new house in the US, with about $2,000 as a common middle value. Priced by the hour, most drafters charge $50 to $130 per hour, and per-square-foot quotes range from well under $1 for adapting a stock plan to $1 to $10 for a fully custom design.

That makes a draftsman much cheaper than an architect, who often charges 8 to 15 percent of the construction cost for a full service. The difference comes from the scope: a draftsman turns your ideas, or a designer layout, into accurate drawings, while an architect also leads the design, coordinates consultants and often supports you during construction. I have seen many homeowners get excellent results with a good draftsman, provided they knew exactly what they wanted before the first meeting.

How Much Does a Draftsman Charge? Typical Rates

Drafters quote in three ways: hourly, per square foot, or as a flat fee for a defined set of drawings.

Hourly Rates

Per Square Foot and Flat Fees

For a house of about 2,000 square feet (about 185 square meters), typical prices look like this:

The wide custom range reflects how much design work the drafter does. If you bring a finished layout and only need clean construction drawings, you are at the low end. If the drafter has to develop the design with you through many rounds, the price moves toward the top. Additions and remodels are often quoted between about $1,000 and $2,500, because existing walls have to be measured and drawn first.

What a Typical Draftsman Plan Set Includes

For a new single-family house, a complete set from a draftsman usually contains:

• Site plan showing the house on the lot with setbacks
• Foundation plan
• Dimensioned floor plans for every level
• Exterior elevations of all sides
• At least one building section through the house
• Roof plan
• Electrical layout with outlets, switches and lights
• Typical construction details and notes

A cheaper quote often leaves out the electrical layout, the details or the site plan, which you then pay for later as extra work. Compare the sheet lists side by side before you choose.

What Affects the Price of Drafting Services

• House size and number of stories: more floors mean more plans, sections and elevations.
• Complexity: complex roofs, vaulted ceilings, a sloped lot or unusual structure take more time to draw.
• How developed your idea is: a clear, dimensioned sketch saves hours compared with a verbal description.
• Number of revisions: many drafters charge extra changes per sheet, often around $50 to $60, and more for rush jobs.
• Sheets required: a basic permit set is cheaper than a full set with details, electrical plans and schedules.
• Location and experience: rates in large cities and for senior drafters are higher.
• Rush service: a surcharge of about 15 to 20 percent is common.

Extra Costs on Top of the Drafting Fee

The drafting fee is rarely the only design cost. Plan for these items as well:

• Structural engineer: often $500 to $2,000 for a house, for calculations, beam sizes and a stamp where required.
• Plan review by a professional: roughly $200 to $400 when someone checks the set before submission.
• Land survey: about $400 to $1,000.
• Soil test: about $700 to $1,800, depending on the site.
• Permit fees: charged by your local building department.

Many building departments accept drawings from a draftsman for a single-family house but ask for an engineer stamp on the structural parts. Whether that applies to you depends on your state and local rules, so check with your building department early. Our guide on how much construction drawings cost explains which drawings a typical permit and building set contains.

Draftsman vs. Designer vs. Architect

The three roles overlap, and the job titles are used loosely. This comparison shows the typical differences in the US.

In practice, a draftsman is the right choice when the design work is mostly done. If you still need someone to solve the layout, choose a designer. If the house is complex, the site is difficult, or your jurisdiction requires an architect for your building type, an architect is worth the higher fee.

How to Get an Accurate Quote from a Draftsman

1. Prepare a room list with sizes, the number of stories and the approximate footprint.
2. Bring a dimensioned layout or at least a scaled sketch of each floor.
3. Collect site information: lot size, setbacks, slope, survey if available.
4. Ask for the sheet list included in the price and the cost per extra revision.
5. Clarify the engineering: who provides structural calculations and stamps, and at what cost.

The DIY Alternative: Draw the Plans Yourself

Much of what you pay a draftsman for is the time it takes to turn ideas into exact, dimensioned drawings. With house planning software built for homeowners, you can do a large part of that work yourself and then decide how much professional help you still need.

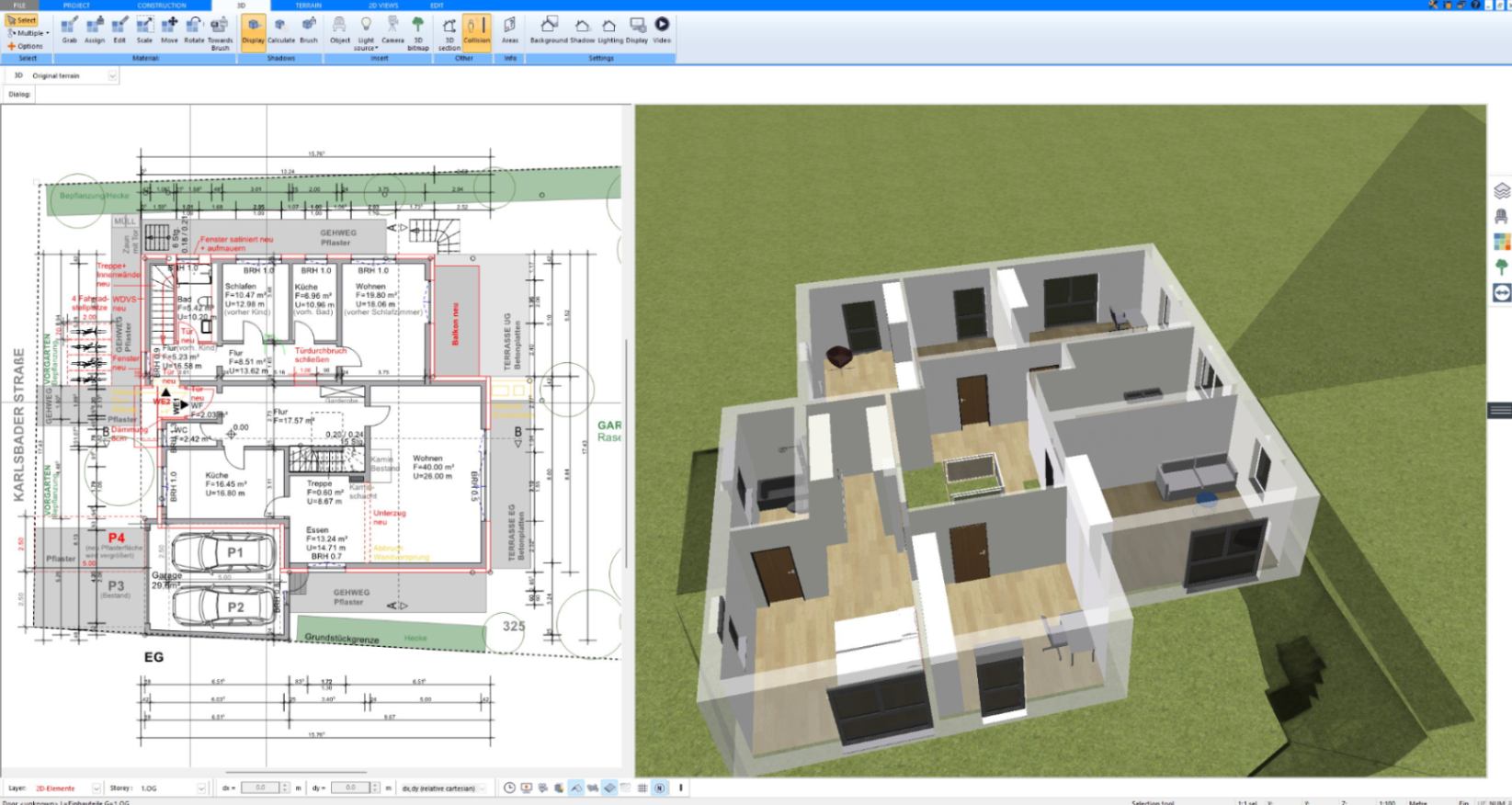

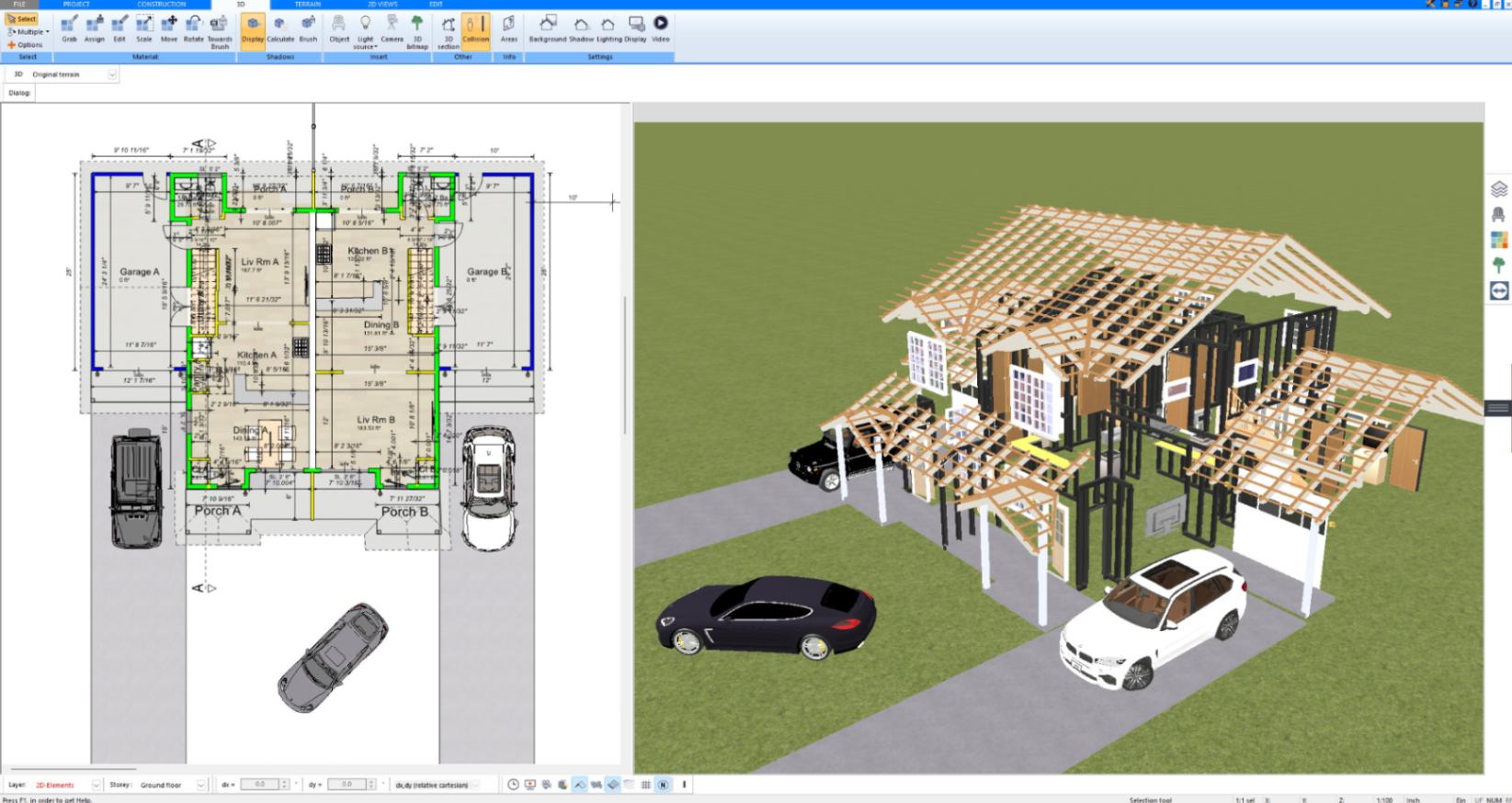

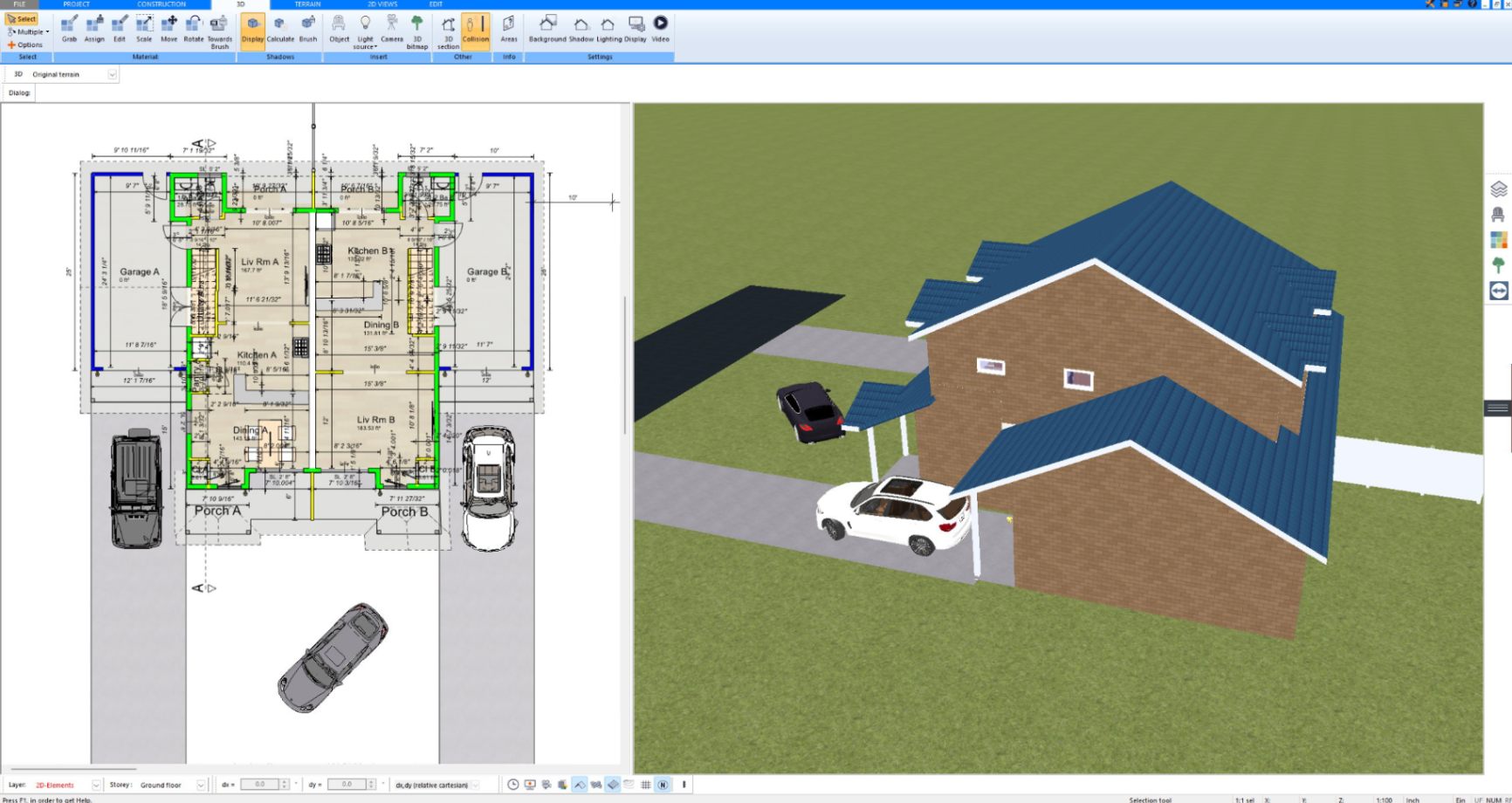

Plan7Architect works with real building elements instead of drawn lines. Walls have thickness, layers and height, and floors, ceilings, roofs, stairs, foundations and beams are created as objects. Placing a window or door cuts the opening automatically, and the floor plan, sections, elevations and 3D view always stay in sync. Dimensions are generated automatically, and you can enter exact lengths and angles in imperial or metric units. Timber construction tools let you see the wood framing in 3D.
