Create Floor Plans with Dimensions

With Plan7Architect you can quickly create floor plans that include exact dimensions. You can draw walls, rooms, doors, and windows while entering precise measurements directly or adjust them afterward. The software automatically shows and updates dimension lines in your plan, so you always have an accurate view of the layout. Both European (meters, centimeters) and American (feet, inches) measurement units can be used, depending on your preference.

Step-by-Step: Drawing a Floor Plan with Dimensions

Setting up Units (Metric or Imperial)

Before you begin your project, you can choose the measurement system that best fits your region. Plan7Architect allows you to set metric units like meters and centimeters or imperial units like feet and inches. This ensures that your dimensions are displayed in a way that matches your local standards and is easy for contractors or clients to understand.

Drawing Walls and Rooms with Dimensions

When drawing walls, you can directly input their length. For example, you might set a wall to exactly 5 meters or 16 feet long while placing it. If you prefer, you can adjust dimensions afterward by simply clicking on the wall and editing its value. Rooms are automatically dimensioned by the software, so you can immediately see the total size of each space. The snapping function helps you align walls precisely without gaps or overlaps.

Adding and Adjusting Windows, Doors, and Openings

Windows, doors, and other openings can be placed in walls with exact width and height values. For instance, you can define a door as 90 cm or 3 feet wide and set its position precisely within the wall. When you resize these elements, the dimension lines update automatically, giving you clear and accurate information at all times.

Dimension Tools for Precision

Plan7Architect includes several tools for working with dimensions:

• Automatic dimensions for walls, room sizes, and distances

• Manual dimensioning to create custom measurement lines

• Guidelines to align objects precisely in your plan

These tools help ensure that your design matches the real-world measurements you want to achieve.

Displaying and Editing Dimensions

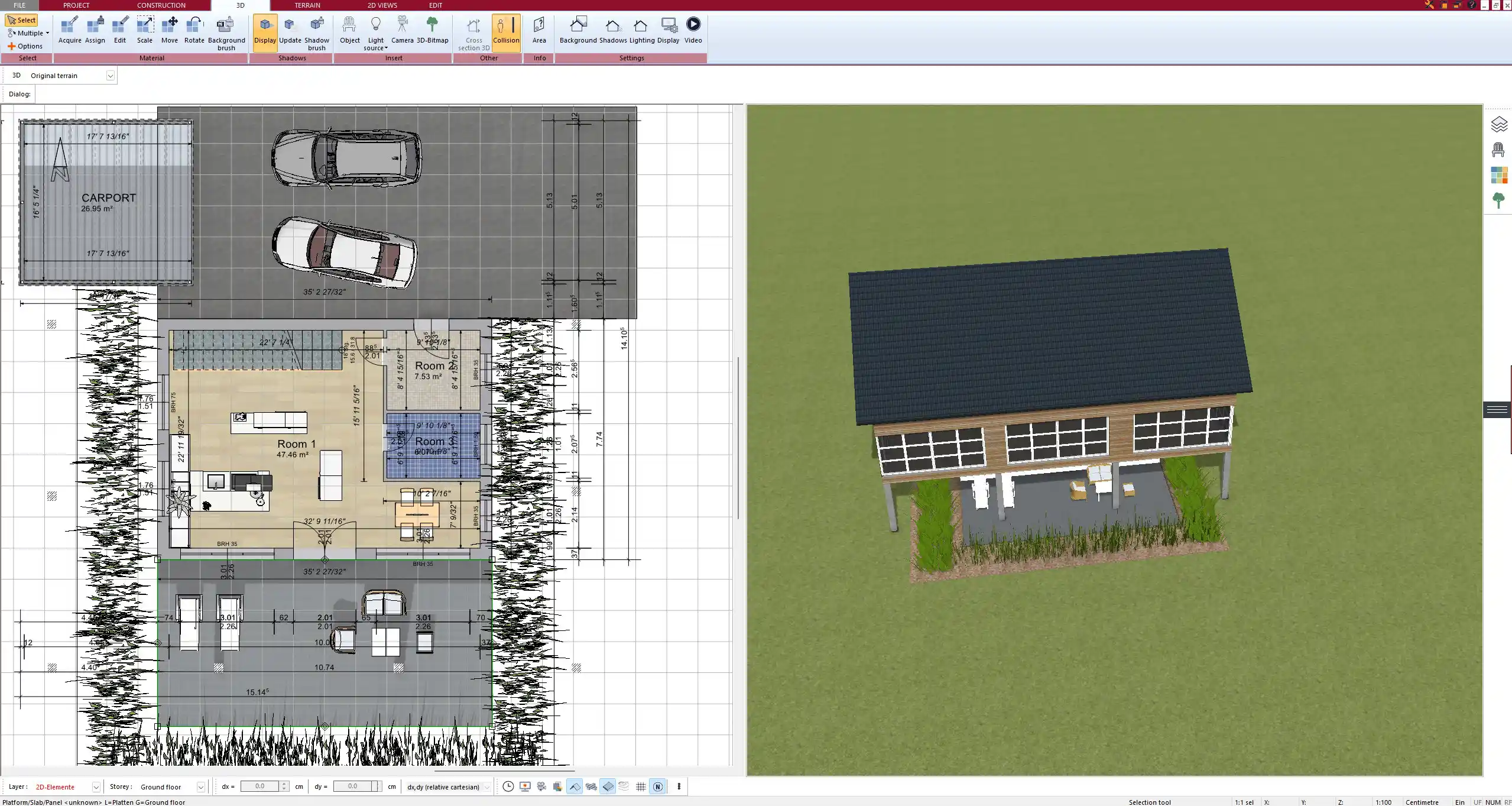

Dimensions appear directly on your floor plan, making it easy to read and understand. You can choose whether to display them or hide them, depending on your needs. There are also customization options, such as changing the font size or style of dimension lines, so your plan looks exactly as you want it when printed or exported.

Exporting and Printing Floor Plans with Dimensions

2D Floor Plan Exports

You can export your floor plan as a 2D drawing that includes all the dimensions. This makes it useful for documentation, contractor communication, or submitting plans for building permits. The exported file is clear and professional, ready for use in real projects.

3D Views with Dimension Support

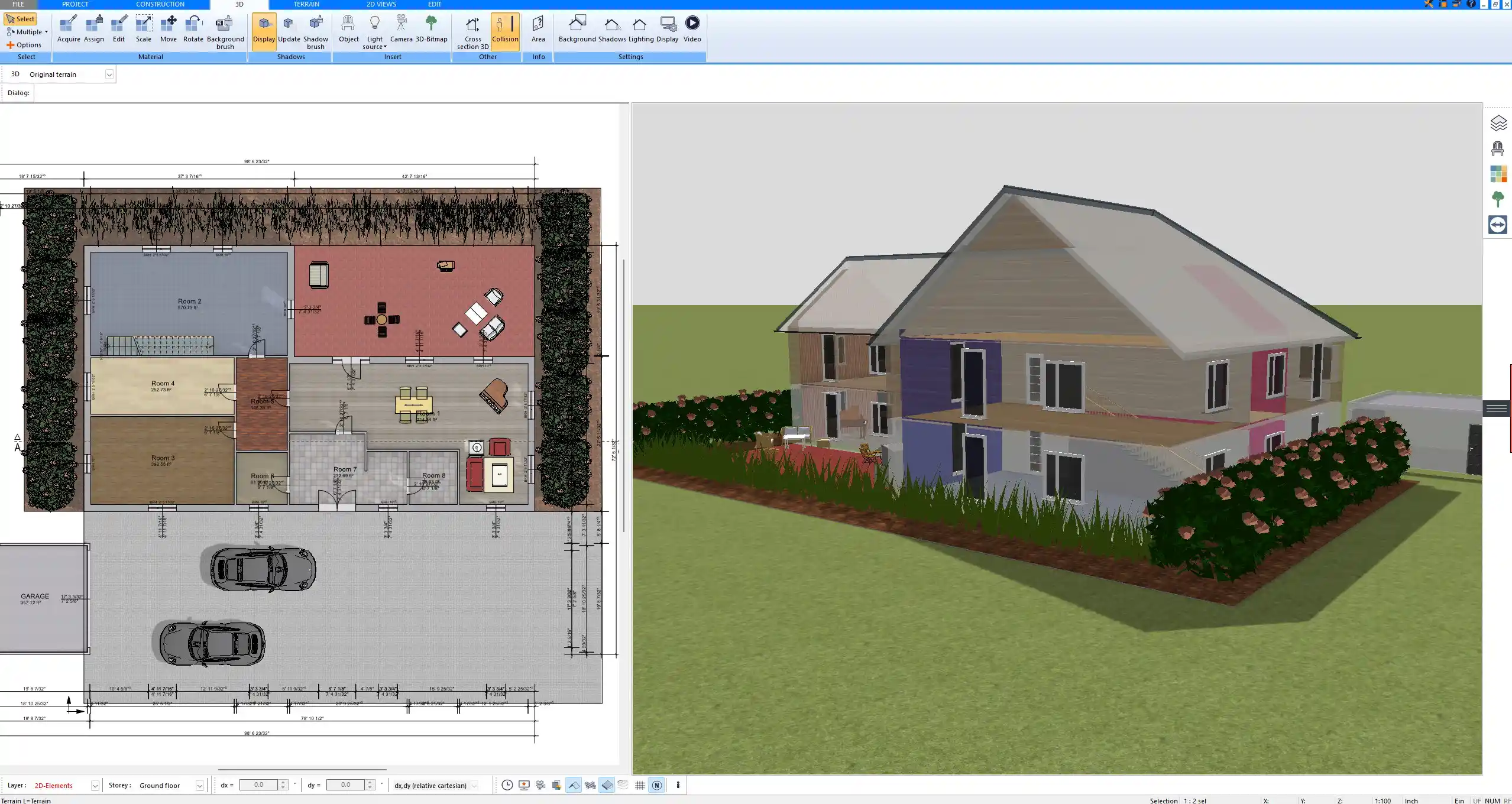

Plan7Architect also allows you to view your project in 3D. While dimensions are primarily used in 2D views, the 3D visualization ensures that what you see in your plan corresponds exactly to the real structure. This is especially useful when showing a project to clients or partners, as they can understand both the look and the measurements at once.

Benefits of Creating Floor Plans with Dimensions in Plan7Architect

Working with dimensions in Plan7Architect provides several advantages:

• High precision in planning and designing

• Easier communication with builders and contractors

• Automatic updates when you change measurements

• Time savings compared to manual drafting

• Suitable for designing houses, apartments, extensions, renovations, and even commercial spaces

Practical Tips for Accurate Floor Plans

• Always check that you have set the correct measurement system before starting.

• Use the snapping and grid functions to align elements correctly.

• Double-check printouts of your dimensioned floor plan before construction begins.

Create Professional Floor Plans with Plan7Architect

With Plan7Architect you can design professional floor plans that include precise dimensions for walls, rooms, windows, and doors. The software makes it easy to switch between European and American measurement units, so your plan matches your needs anywhere in the world. Whether you are planning a house, an apartment, or a renovation project, you can create detailed plans quickly and accurately. When purchasing Plan7Architect, you benefit from a 14-day right of withdrawal, giving you the option to cancel your purchase easily by email. This replaces the need for a trial version and gives you full flexibility to test the software without risk.
