Construction Drawings Abbreviations – Complete Guide

Construction drawings often contain a large number of abbreviations. These shorten complex terms and keep plans clear and readable. Below is a quick reference table with some of the most frequently used abbreviations you will encounter.

Why Abbreviations Are Used in Construction Drawings

Abbreviations reduce clutter in drawings that are otherwise full of details. They save space and help architects, engineers, and contractors communicate quickly. They also establish a common technical language that ensures everyone on a project understands the same notation.

Categories of Abbreviations Explained

Dimensional and Structural Abbreviations

In construction drawings, dimensions and structural terms are abbreviated to keep instructions concise.
Examples include:

• CL (Centerline)

• R (Radius)

• Ø (Diameter)

• O.C. (On Center)

These are often placed next to wall layouts, beams, or reinforcement details.

Material Abbreviations

Materials are one of the most common abbreviation categories. You will frequently see:

• CONC (Concrete)

• GYP (Gypsum)

• STL (Steel)

• WD (Wood)

• INS (Insulation)

These make it possible to understand at a glance which material is intended for a wall, floor, or structural element.

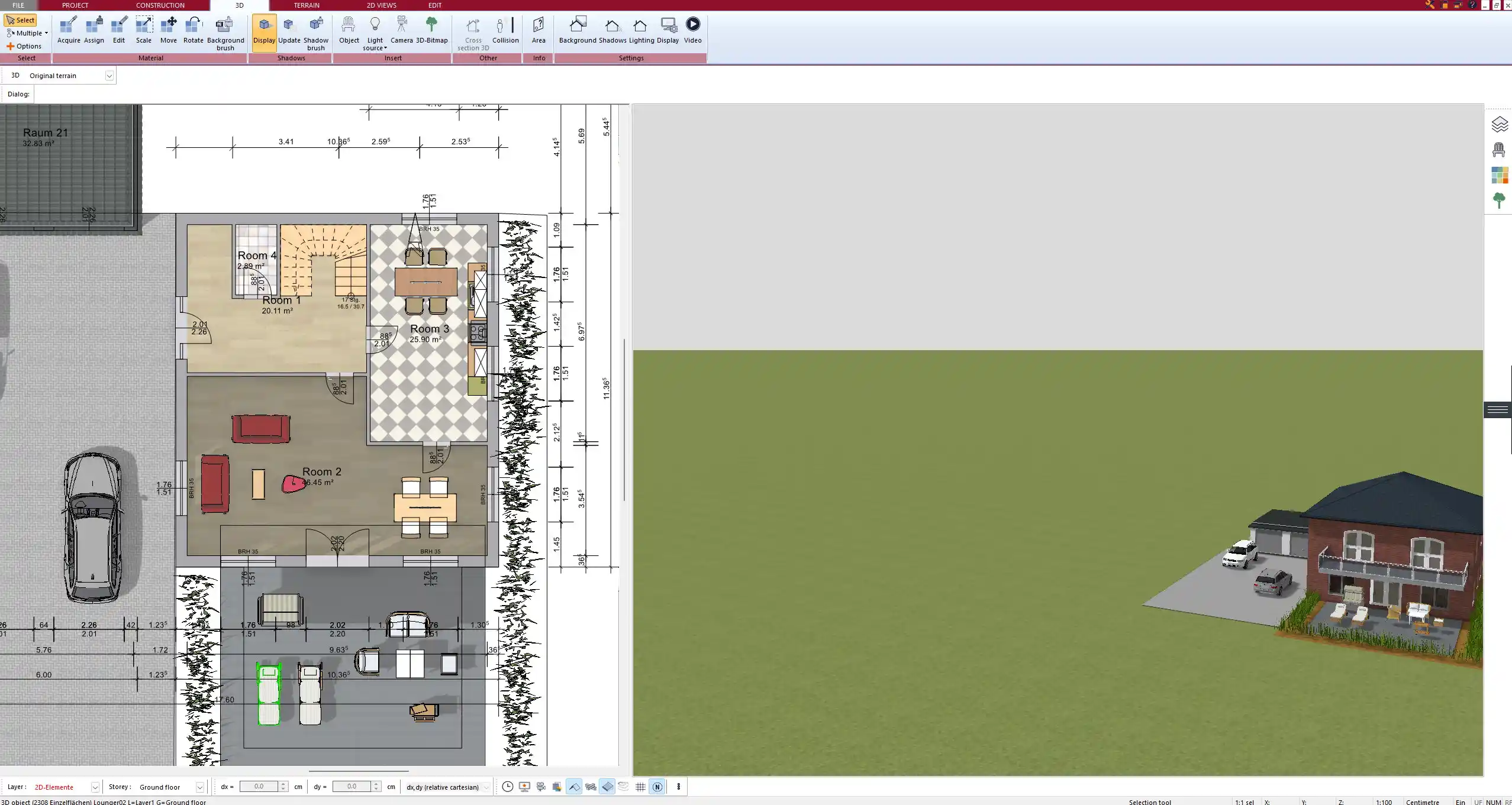

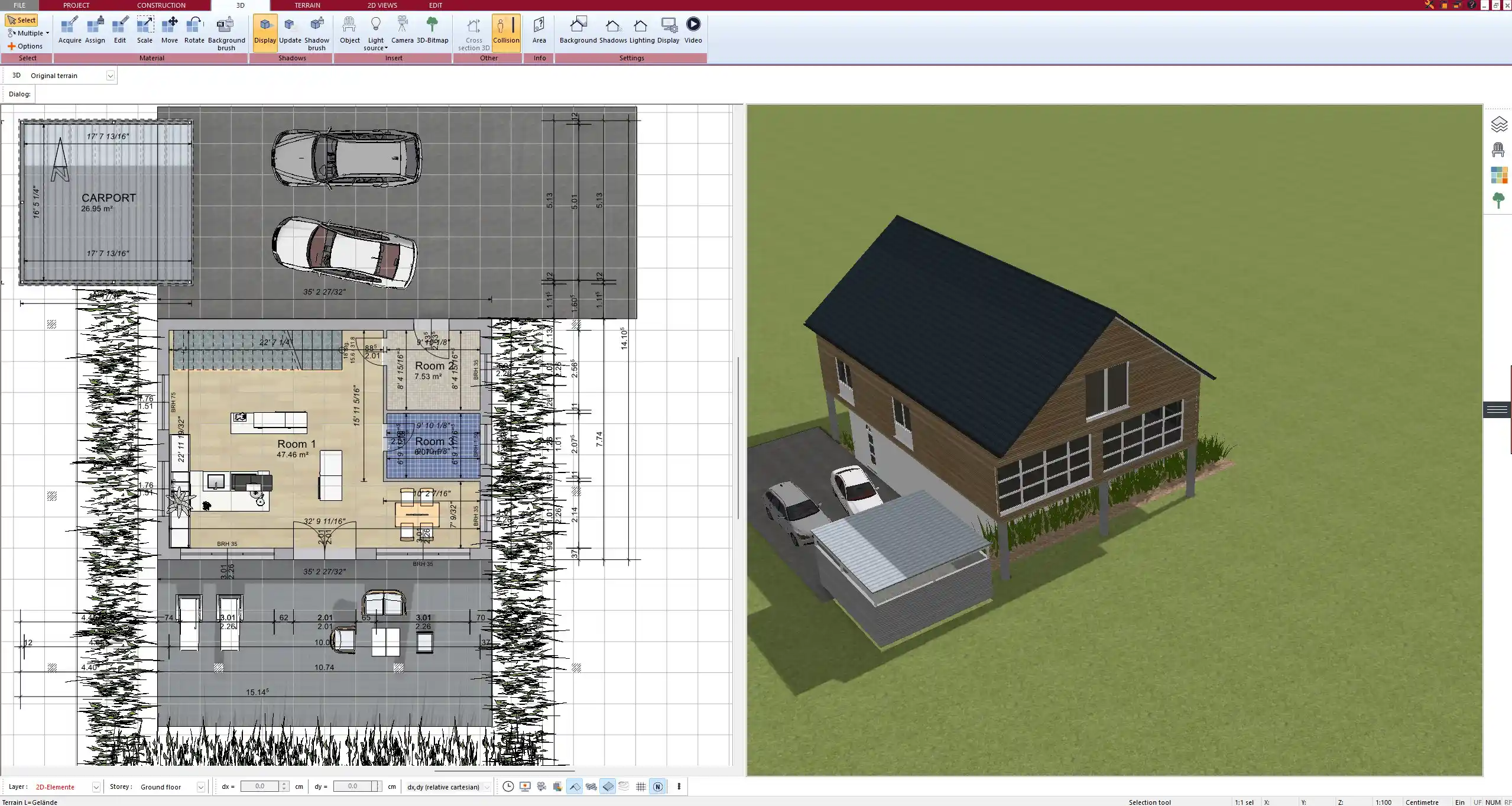

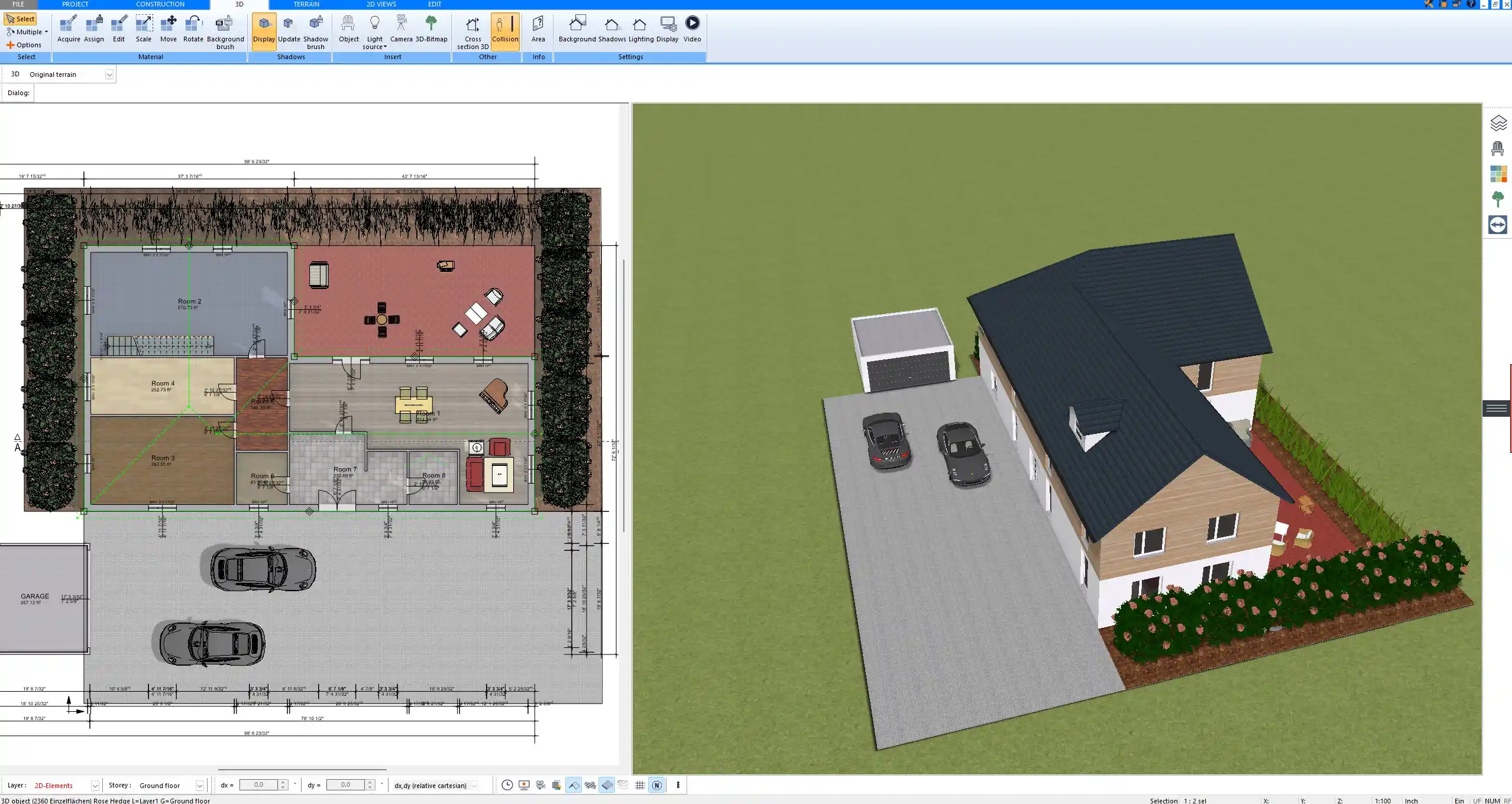

Room and Space Abbreviations

Floor plans often use abbreviations for rooms to save space.
Examples:

• KIT (Kitchen)

• LR (Living Room)

• BR (Bedroom)

• BATH (Bathroom)

• DIN (Dining Room)

These are especially useful in residential design and allow for compact labeling in plans.

Mechanical, Electrical, and Plumbing (MEP) Abbreviations

Technical systems require many repeated terms, so abbreviations are common.
Examples include:

• HVAC (Heating, Ventilation, Air Conditioning)

• W (Water)

• S (Switch)

• GFI (Ground Fault Interrupter)

• EL (Elevator)

You will often find these on service plans and technical layers of drawings.

Notes and General Abbreviations

General notes are also abbreviated to speed up communication.
Examples:

• TYP (Typical)

• VIF (Verify in Field)

• NTS (Not to Scale)

• NIC (Not in Contract)

• ALT (Alternate)

These are essential to prevent misunderstandings and ensure accuracy on-site.

Regional and Industry Variations

Not all abbreviations are universal. For example, WC is commonly used in Europe for “toilet,” while in the United States, restroom or bathroom is more common. Units of measurement also differ: some drawings use millimeters and square meters, while others use feet and square feet. In Plan7Architect, you can easily switch between European and American units depending on your project needs.

How to Read and Understand Abbreviations Quickly

Most professional drawings contain a legend or key where abbreviations are explained. You should always check this section first. It is also helpful to cross-reference abbreviations with project specifications or ask the architect if something is unclear.

Tip: Keep your own personal abbreviation list for the types of projects you most often work on. This will make it easier to read new plans quickly without hesitation.

Extended List of Construction Abbreviations (Detailed)

Here is a more comprehensive alphabetical list covering frequently used terms:

A – E

• AB – Anchor Bolt

• AC – Air Conditioning

• BLDG – Building

• BOT – Bottom

• CAB – Cabinet

• CEM – Cement

• DET – Detail

• DW – Dishwasher / Drywall (depending on context)

F – L

• FLR – Floor

• FND – Foundation

• GALV – Galvanized

• HDR – Header

• INS – Insulation

• LAM – Laminate

• LAV – Lavatory

M – R

• MAT – Material

• MECH – Mechanical

• MTL – Metal

• OPNG – Opening

• PL – Property Line

• PTD – Painted

• REF – Refrigerator / Reference

• RM – Room

S – Z

• SD – Smoke Detector

• STL – Steel

• T&G – Tongue and Groove

• TOS – Top of Steel

• TYP – Typical

• UON – Unless Otherwise Noted

• VERT – Vertical

• WD – Wood

• WDW – Window

Practical Tips for Working with Abbreviations

• Always confirm abbreviations when working with international teams.

• Use modern software that allows you to add your own abbreviation notes for clarity.

• Keep printed or digital cheat sheets for your most common projects.
